Modern bridge engineering is a delicate balancing act between structural rigidity and controlled flexibility. Civil engineers design bridges to span immense distances while carrying massive dynamic traffic loads, but these structures are constantly subject to environmental forces. Fluctuating ambient temperatures cause thermal expansion and contraction; high winds exert lateral shear forces; traffic braking causes longitudinal forces; and seismic events generate intense ground motions.
Sitting quietly at the vital interface between the superstructure (the bridge deck and girders) and the substructure (the piers and abutments) are critical components known as bridge bearings. Despite their compact size compared to massive concrete girders or steel trusses, bridge bearings are fundamental to structural longevity. Leading bridge bearing manufacturers design these specialized components to handle extreme stress, preventing natural forces from compromising the supporting substructure and leading to severe structural degradation or catastrophic failure.
What Are Bridge Bearings and How Do They Work?
A bridge bearing is a mechanical assembly designed to transmit gravity and dynamic forces from the deck down into the piers while allowing controlled movement. Bridge decks are far from static; they twist, slide, expand, and flex continuously under operational conditions.
Bridge bearings accommodate three primary types of movement:
- Translational Movement: Horizontal displacement in both longitudinal and transverse directions. This movement is primarily driven by thermal expansion and contraction of deck materials, concrete shrinkage, creep, and braking forces from vehicles.
- Rotational Movement: Angular deflection occurring along the longitudinal or transverse axes. Rotational forces occur when heavy vehicular loads cause girders to bend slightly between supports.
- Vibration and Energy Dissipation: Absorption of shock loads caused by sudden traffic impacts or seismic ground motion.
By accommodating these displacements in a controlled manner, bearings prevent high bending moments and shear stresses from building up in the bridge piers and abutments.
Common Types of Bridge Bearings in Infrastructure
Selecting the right bearing depends on span length, expected load capacities, environmental conditions, and rotation demands. Engineering specifications provided by qualified bridge bearing manufacturers in india generally group bridge bearings into four primary categories:
| Bearing Types | Internal Mechanism | Life Span | Advantages |
| Elastomeric Bearings | Alternating layers of synthetic rubber (Neoprene/NR) and bonded internal steel shim plates. | Short-to-medium span highway and rail bridges | Highly durable, low maintenance, economical, and provides multi-directional flexibility. |
| Pot Bearings | An elastomeric pad enclosed inside a rigid steel cylinder (pot) with a sealing ring and top piston | High-load, medium-to-long span structures | Handles extremely high vertical loads while allowing rotation via internal pad deformation. |
| Spherical Bearings | Precision-machined convex and concave steel plates sliding against low-friction PTFE/UHMWPE liners | Long-span, complex curved, or highly skewed bridges | Accommodates multi-directional rotation without inducing high stress concentration. |
| Seismic Isolators | Lead-Rubber Bearings (LRB) or High-Damping Rubber Bearings (HDRB) | Bridges constructed in active seismic fault zones | Absorbs lateral earthquake energy, uncoupling the deck motion from ground acceleration. |
Key Functions in Bridge Design and Long-Term Maintenance
Bridge bearings play an indispensable role throughout the lifecycle of highway and rail infrastructure, from initial construction to decades of routine maintenance.
- Managing Thermal Expansion and Contraction
Materials such as reinforced concrete and structural steel undergo measurable dimensional changes when exposed to temperature shifts. On long-span bridges, thermal expansion can alter the deck length by several inches between summer and winter. Bearings act as expansion joints at the support level, allowing the deck to slide without transferring immense tensile or compressive stress to the concrete piers.
- Distributing Point Loads Evenly
Girders transfer millions of pounds of weight to relatively small contact areas on top of support piers. If concrete girders rested directly on concrete piers, minor alignment imperfections would create extreme stress concentrations, crushing the pier caps. Bearings distribute these high-intensity forces evenly over a calculated surface area.
- Protecting Against Dynamic and Seismic Events
In earthquake-prone regions, structural flexibility saves lives. Specialized seismic isolation bearings act as shock absorbers. During an earthquake, the bearings deform horizontally to dissipate energy, drastically reducing the forces transmitted to the bridge columns and preventing structural collapse.
Inspection and Signs of Bearing Degradation
Because bearings absorb continuous mechanical stress and exposure to de-icing salts, moisture, and UV light, regular inspection is critical. Civil engineers work closely with bridge bearing manufacturers to establish routine maintenance guidelines to spot several common failure modes:
- Elastomeric Bulging or Splitting: Excessive shearing or crushing of the rubber layers, often indicating overload or chemical degradation.
- Corrosion of Steel Components: Rust buildup on steel plates or pot cylinders, which can bind sliding mechanisms.
- PTFE Liner Wear or Migration: Flaking or displacement of low-friction sliding surfaces, leading to metal-on-metal friction.
- Anchor Bolt Shear: Broken or displaced anchorage connection hardware caused by unpredicted horizontal forces.

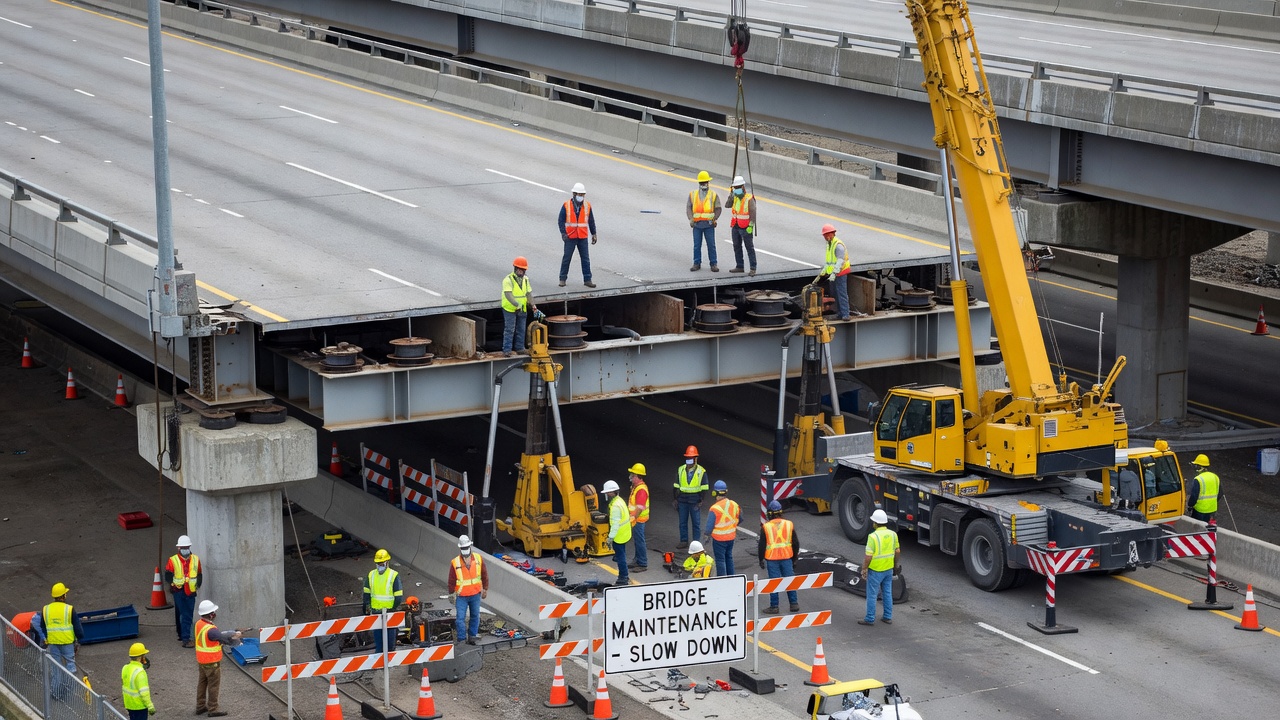

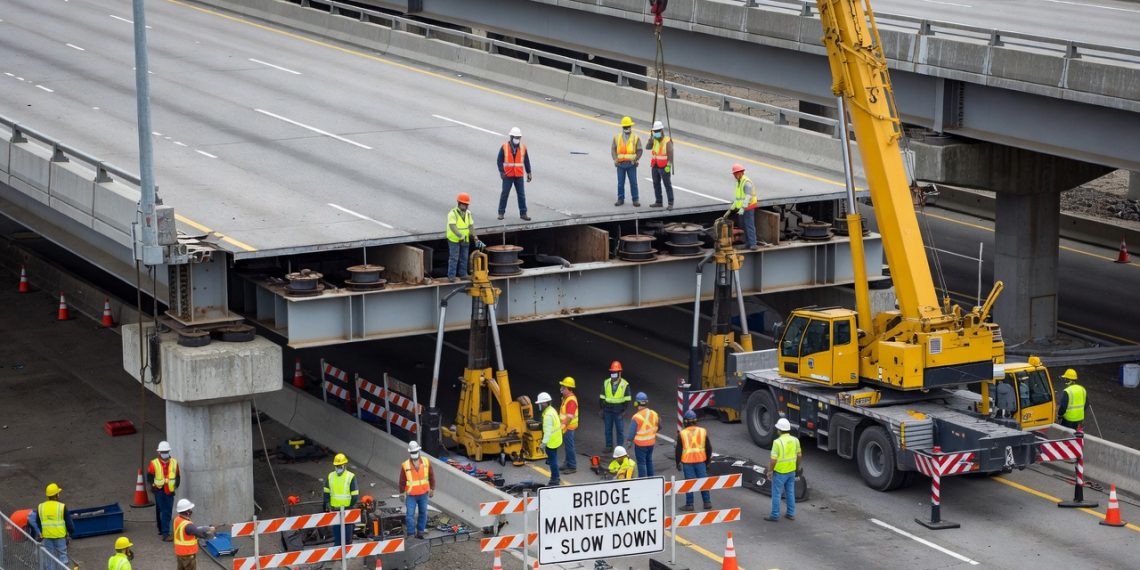

When replacement is required, engineers use hydraulic jacks to lift the bridge deck by a fraction of an inch, allowing old bearings to be removed and new ones installed without interrupting long-term traffic flow.
Engineering Considerations for Sourcing Bearings
Selecting high-performance structural components requires early coordination with certified bridge bearing manufacturers during the initial design phase. Engineers must evaluate several factors:
- Load Criteria: Accurately calculating dead loads, dynamic live loads, wind uplift, and lateral forces.
- Material Standards: Ensuring compliance with international standards (such as AASHTO, EN 1337, or IRC) for elastomer elasticity and steel grade purity.
- Maintenance Accessibility: Designing pier caps with designated jacking locations so maintenance teams can safely inspect or replace bearings after 30 to 50 years of service.
Bridge bearings operate out of immediate sight, hidden beneath massive concrete decks and steel girders, but their role in modern civil engineering is fundamental. By accommodating continuous thermal movement, mitigating seismic forces, and distributing concentrated loads, these components ensure that transport infrastructure remains safe, resilient, and operational for generations to come.
